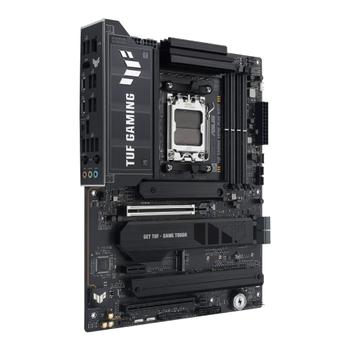

ASUS Amd X870E Socket Am5 Atx (TUF GAMING X870E-PLUS WIFI7)

ASUS Amd X870E Socket Am5 Atx

Produktnummer:
TUF GAMING X870E-PLUS WIFI7
EAN:
4711636100342
  • Prosessorsokkel Socket AM5
  • Chipset AMD X870E
  • M.2 Slot 4
  • Minnespor 4 x DIMM, DDR5
  • Maksimal RAM-frekvens 8GHz
  • Støttet maksimalt minne 256GB
  • Formfaktor ATX
Beskrivelse
Spesifikasjoner

TUF GAMING X870E-PLUS WIFI7

ASUS TUF GAMING X870E-PLUS WIFI7 takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

Specifications:

CPU
  • AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset
  • AMD X870E Chipset
Memory
  • 4 x DIMM slots, max. 256GB, DDR5
  • Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM
  • Dual channel memory architecture
  • DIMM Fit
  • Supports AMD Extended Profiles for Overclocking (EXPO™)
  • ASUS Enhanced Memory Profile (AEMP)
Graphics
  • 1 x HDMI™ port
  • 2 x USB4® (40Gbps) ports support USB Type-C® display outputs
Expansion Slots
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot
  • AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
  • AMD X870E Chipset
    • 1 x PCIe 4.0 x16 slot (supports x4 mode)
    • 1 x PCIe 3.0 x1 Slot
Storage
  • Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors
    • M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
    • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
  • AMD Ryzen™ 8000 Series Desktop Processors
    • M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    • M.2_2 slot is not supported
  • AMD X870 Chipset
    • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    • M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    • 4 x SATA 6Gb/s ports
  • AMD RAIDXpert2 Technology
    • Ryzen™ 9000 Series Processors: RAID 0/1/5/10
    • Ryzen™ 8000 Series Processors: RAID 0/1
    • Ryzen™ 7000 Series Processors: RAID 0/1/10
Ethernet
  • 1 x Realtek 2.5Gb Ethernet
  • TUF LANGuard
Wireless & Bluetooth
  • Wi-Fi 7
  • 2x2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band
  • Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
  • Bluetooth® v5.4
USB
  • Rear USB (Total 13 ports)
    • 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
    • 3 x USB 10Gbps ports (3 x Type-A)
    • 4 x USB 5Gbps ports (4 x Type-A)
    • 4 x USB 2.0 ports (4 x Type-A)
  • Front USB (Total 7 ports)
    • 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
  • Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
    • Impedance sense for front and rear headphone outputs
    • Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
    • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    • High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
    • Supports up to 32-Bit/192 kHz playback
  • Audio Features
    • Audio Shielding
    • Premium audio capacitors
    • Dedicated audio PCB layers
    • Audio cover
    • Unique de-pop circuit
Back Panel I/O Ports
  • 2 x USB4® (40Gbps) ports (2 x USB Type-C®)
  • 3 x USB 10Gbps ports (3 x Type-A)
  • 4 x USB 5Gbps ports (4 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x HDMI™ port
  • 1 x Wi-Fi module
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x BIOS FlashBack™ button
Internal I/O Connectors
  • Fan and Cooling Related
    • 1 x 4-pin CPU Fan header
    • 1 x 4-pin CPU OPT Fan header
    • 1 x 4-pin AIO Pump header
    • 4 x 4-pin Chassis Fan headers
  • Power Related
    • 1 x 24-pin Main Power connector
    • 2 x 8-pin +12V CPU Power connectors
  • Storage Related
    • 4 x M.2 slots (Key M)
    • 4 x SATA 6Gb/s ports
  • USB
    • 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)
    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • Miscellaneous
    • 3 x Addressable Gen 2 headers
    • 1 x Clear CMOS header
    • 1 x Chassis Intrusion header
    • 1 x Front Panel Audio header (F_AUDIO)
    • 1 x 10-1 pin Front System Panel header
    • 1 x Thermal Sensor header
Special Features
  • ASUS TUF PROTECTION
    • DIGI+ VRM (Digital power design with SPS)
    • ESD Guards
    • TUF LANGuard
    • Overvoltage protection
    • SafeSlot
    • Stainless-steel back I/O
  • ASUS Q-Design
    • M.2 Q-Latch
    • Q-Release Slim (with PCIe SafeSlot)
    • Q-Antenna
    • Q-Dashboard
    • Q-DIMM
    • Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    • Q-Slot
  • ASUS Thermal Solution
    • M.2 heatsinks
    • VRM heatsink design
  • ASUS EZ DIY
    • BIOS FlashBack™ button
    • BIOS FlashBack™ LED
    • ProCool
    • Pre-mounted I/O shield
    • SafeDIMM
  • Aura Sync Addressable Gen 2 headers
  • Front Panel USB 20Gbps with PD Fast Charge Support
    • Support: up to 30W fast charging and USB Wattage Watcher
    • Output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A
    • Compatible with PD3.0
Software Features
  • ASUS Exclusive Software
    • Armoury Crate
      • Aura Creator
      • Aura Sync
      • Fan Xpert 4 (with AI Cooling II)
    • ASUS AI Advisor
    • ASUS DriverHub
    • ASUS GlideX
    • USB Wattage Watcher
    • TurboV Core
    • TUF GAMING CPU-Z
    • DTS Audio Processing
    • Norton 360 for Gamers (60 Days Free Trial)
    • WinRAR (40 Days Free Trial)
  • UEFI BIOS
    • AI Overclocking Guide
    • ASUS EZ DIY
      • ASUS CrashFree BIOS 3
      • ASUS EZ Flash 3
      • ASUS UEFI BIOS EZ Mode
      • ASUS MyHotkey
BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
Manageability
  • WOL by PME, PXE
Accessories
  • Cables 2 x SATA 6Gb/s cables
  • Miscellaneous
    • 1 x ASUS WiFi Q-Antenna
    • 2 x M.2 rubber packages
    • 1 x Screw package for M.2 SSD
    • 1 x TUF GAMING sticker
  • Documentation 1 x Quick start guide
Operating System
  • Windows 11
Form Factor
  • ATX Form Factor
  • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
