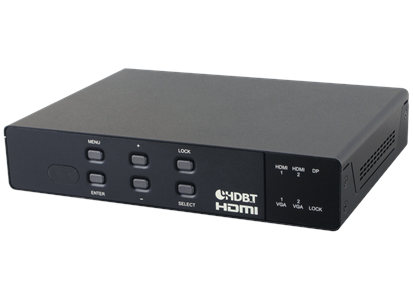

CYPRESS Scaler Multi-format > HDMI HDBT 2xHDMI 2xVGA 1xDP 1xMIC 3xAud IP RS232
Produktnummer:
CSC-103TXPL
|
HDMI/DP/VGA til HDMI/HDBaseT Scaler
This HDMI/DisplayPort/VGA to HDMI Scaler with HDBaseT Output is designed to switch and scale up to 5 AV inputs to simultaneous HDMI and HDBaseT outputs at resolutions up to 1080p/WUXGA
Additionally, it offers 3 analog Line level inputs, a switchable Microphone input and a Line level output. The microphone input features a 48V 'Phantom' power mode for use with professional microphones. The audio DSP engine offers auto-mixing and auto-gain control to mix or reduce the background audio in order to enhance the main audio source. The system can be controlled and easily configured via WebGUI, IR remote control or RS-232. This device is an ideal solution for presentation facilities at a classroom and/or conference room. HDMI and HDCP compliant
Features
- Supports multiple inputs: 2×HDMI, 2×VGA and 1×DisplayPort, 3×Unbalanced Audio, 1×MIC In (48V phantom selection)
- Offers simultaneous outputs: 1×HDMI, and 1×CAT5e/6/7
- Supports HDTV resolutions up to 1080p (VGA to WUXGA)
- Supports Internal EDID
- Supports pass-through of PCM 2CH
- Audio DSP offers auto-mixing and auto-gain control for mixing or reducing background audio
- Supports control via WebGUI, IR remote and RS-232
- Supports IR In and IR Out to receive or transmit IR signal from compatible HDBaseT receiver with bi-directional RS-232 control
- Supports input selection through Data Direction Register (DDR)
- Support output resolutions up to 1080p
- Input control provides direct input source selection
Inputs
- 2x HDMI [2x Uncompressed AV and Data]
- 2x 15-pin D-sub [2x VGA RGBHV]
- 1x DisplayPort [1x Uncompressed AV]
- 1x 6.35mm Stereo Jack [1x Microphone]
- 2x 3.5mm Stereo Mini-jack [2x PC 1 / PC 2 Stereo(L/R)]
- 1x 3.5mm Stereo Mini-jack [1x LINE-IN Stereo(L/R)]
- 1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]
- 1x 9-pin D-sub [1x RS-232 Data]
- 6x 1-Pin Terminal Block [1x INPUT CONTROL]
- 1x RJ45 [1x IP Control]
- 1x USB Type A [1x SERVICE Propriety Data]Outputs 1x HDMI [1x Uncompressed AV and Data]
- 1x RJ45 [1x HDMI & Propriety Data]
- 1x 3.5mm Stereo Mini-jack [1x LINE-OUT Stereo(L/R)]
- 1x 3.5mm Stereo Mini-jack [1x Infrared Emitter]
- 1x 3.5mm Stereo Mini-jack [1x RS-232]
