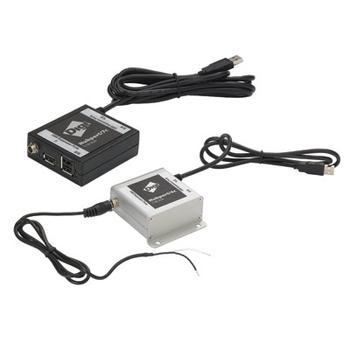

DIGI Hubport® USB 480 Mbit/s
Du må logge inn for å handle/se priser.
|
|
DIGI Hubport® USB 480 Mbit/s
Produktnummer:
301-2010-27
-
Porter
7
-
Display porter
0
-
HDMI porter
0
-
Nettverk
0
|
Beskrivelse
Spesifikasjoner
Hubport®
Model
|
North America: |
International: |
|
Hubport/7c - 7-port switched USB 2.0 hub
|
301-1010-75
|
301-2010-27
|
Hubport/4cM - 4-port switched USB 2.0 hub with metal chassis
|
301-1010-36
|
301-2010-36
|
|
Hubport/4c DC - 4-port switched USB 2.0 hub (DC powered)
|
301-1010-42
|
301-1010-42
|
|
Hubport/7c DC - 7-port switched USB 2.0 hub (DC powered)
| 301-1010-72
|
301-1010-72
|
|
Hubport/4cM DC - 4-port switched USB 2.0 hub (DC powered) with metal chassis
|
301-1010-34
|
301-1010-34
|
|
Hubport/4 - 4-port switched USB hub
|
301-1010-04
|
301-2010-04
|
|
Hubport/4 DC - 4-port switched USB hub (DC powered)
|
301-1010-30
|
301-1010-30
|
|
Hubport/7 - 7-port switched USB hub
|
301-1010-07
|
301-2010-07
|
|
Hubport/7 DC - 7-port switched USB hub (DC powered)
|
301-1010-70
|
301-1010-70
|
|
Hubport offers a simple solution for adding switched Universal Serial Bus (USB) ports to a PC, server or thin client. This external, user installable solution plugs into an existing USB port to provide four or seven additional USB 2.0 ports in a compact chassis for instant peripheral device connectivity. The switched USB architecture guarantees maximum performance on all ports simultaneously. Plastic chassis and metal chassis models are available.
Models include AC or DC powered hubs that accept power from standard AC wall plugs or a variety of 10-26 volt DC power sources, such as vehicle batteries, for mobile applications.
Features
- USB 1.0, 1.1 and 2.0 compatible
- Baud rate: to 480 Mbps
- Multi-TT switched USB architecture guarantees a full 12 Mbps simultaneously on all downstream ports, even if a high speed 480 Mbps transfer is active
- DC powered models for mobile applications
- 500 mA downstream power available per port
- LEDs for system power and port status
- Hubport/4: 5 LEDs
- Hubport/7: 8 LEDs
- Individual port power management
- Locking power connector
- Plug and Play
- No additional IRQ or memory address requirements
- Hot-swappable
- Includes 1-meter USB cable and power supply
Power Requirements
- Ships with plug-mounted 120/230VAC 60/50 Hz at 5VDC @ 3 Amps max
- DC models accept 10 - 26VDC input
Regulatory Approvals
- FCC Part 15, Class B
- CE
- EN55022 Class B
- EN55024
- EN60950
- UL 1950
- CSA 2.2 No. 950
- IEC 950
Operating Systems
- Windows® Vista, Windows Server 2008
- Windows XP, Windows XP Embedded
- Windows NT® 4.0*, Windows NT Embedded*
- Windows CE
- Windows Server™ 2003
- Windows 2000, Windows Me
- Windows 98/SE /95
- Linux
*Supported when connecting Digi USB devices.
Environmental
- Operating temperature: 0º C to 55º C (32º F to 131º F)
- Relative humidity: 0% to 95% (non-condensing)
Line Art
- Hubport/4c, 4c DC & Hubport/7c, 7c DC - Front
- Hubport/4c, 4c DC & Hubport/7c, 7c DC - Back
| Antall porter | 7 |
| Overføringshastighet (Mbps) | 480 Mbit/s |
| Kabellengde | 1 m |
| Plug & Play | Ja |
| Kompatible operativsystemer | -Windows Vista, Windows Server 2008
-Windows XP, Windows XP Embedded
-Windows NT 4.0*, Windows NT Embedded
-Windows CE
-Windows Server 2003
-Windows 2000, Windows Me
-Windows 98/SE /95
-Linux |
| Driftstemperaturområde | 0 - 55 °C |
| Luftfuktighetsområde ved drift | 0 - 95% |
| Videoopptaksgrensesnitt | USB 2.0 |
| Krav til strømforsyning | 120/230VAC 60/50 Hz, 5VDC @ 3 Amps |
