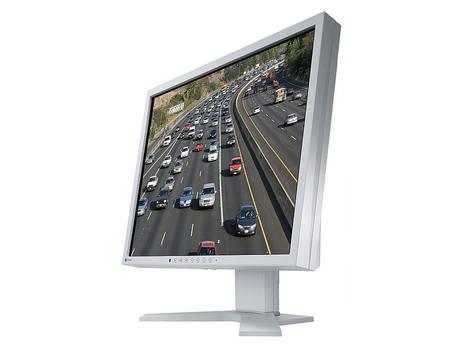

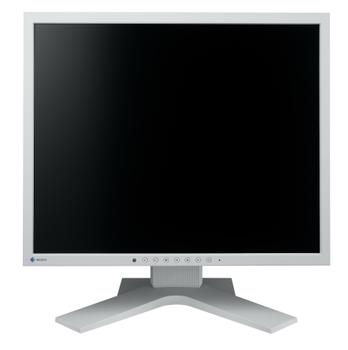

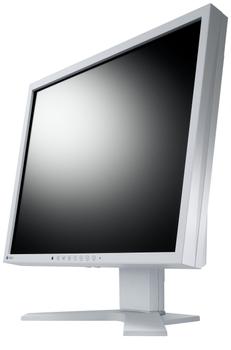

DuraVision FDS1903-A

The DuraVision FDS1903-A is a 1280 x 1024 resolution monitor equipped with both analog and digital inputs for connecting to a wide range of security equipment.

Analog and Digital Input
The DuraVision FDS1903-A is equipped with an HDMI connector for receiving signals from a digital source, such as an HDD recorder. It also has a composite (BNC) input for connection to video surveillance equipment, such as closed-circuit televisions (CCTV) and security cameras. The monitor supports NTSC, PAL, and SECAM signals for connecting to a variety of other surveillance equipment.

Flexible Screen Display
The monitor can accept a full HD (1920 x 1080) signal via HDMI and display at its native resolution of 1280 x 1024. Multiple screen setting options are available for analog or digital signals that allow operators to display images to fit to the screen, stretch to fill, or enlarge while maintaining aspect ratio.

Underscan and Overscan Display Functions
Underscan is a function that shows 100% of an image and is ideal for video signals while overscan displays approximately 95% of an image, eliminating extraneous TV broadcasting data that sometimes appears at the edges of the screen.

Clear View from Below
When viewing an LCD screen from below, colors typically appear washed out. The DuraVision FDS1903-A includes an Up View function which minimizes color wash-out for maintaining a clear view. This is ideal for environments where the monitor is installed above eye level.

Reduced Noise and Flicker
A 3D Y/C separation circuit is built in and separates the brightness signal from the color information. This effectively reduces color flickering and noise that is typically characteristic of analog signals.

Built-In Stereo Speakers
The DuraVision FDS1903-A comes equipped with built-in 0.5 W + 0.5 W stereo speakers for environments that require sound output from the monitor.

24-Hour Use, 2-Year Warranty
The monitor is built for 24-hour use and is backed by a 2-year manufacturer's warranty for long-term reliability.

Specifications:

Model Variations	FDS1903-AGY: with stand, gray FDS1903-ABK: with stand, black FDS1903-AFGY: without stand, gray FDS1903-AFBK: without stand, black
Panel
Type	TN
Backlight	LED
Size	19" / 48.2 cm
Native Resolution	1280 x 1024 (5:4 aspect ratio)
Viewable Image Size (H x V)	376.3 x 301.1 mm
Pixel Pitch	0.294 x 0.294 mm
Display Colors	16.77 million
Viewing Angles (H / V, typical)	170°, 160°
Brightness (typical)	350 cd/m²
Contrast Ratio (typical)	1000:1
Response Time (typical)	10 ms (black-white-black)
Video Signals
Input Terminals	HDMI (HDCP1.4), BNC (Composite)
Digital Scanning Frequency (H / V)	15 - 68 kHz, 50 - 61 Hz
Video Input Format	NTSC, PAL, SECAM
Audio
Speakers	0.5 W + 0.5 W
Input Terminals	Stereo mini jack
Power
Power Requirements	AC 100 - 240 V, 50 / 60 Hz
Maximum Power Consumption	23 W
Power Save Mode	2.5 W or less
Features & Functions
OSD Languages	English, French, German, Italian, Japanese, Simplified and Traditional Chinese, Spanish, Swedish
Others	Color Adjustment (Brightness, Contrast, Temperature, Gamma, Saturation, Hue, Gain, Reset), Screen Size, Input Color Format, Input Range, Noize Reduction, Sharpness, Over Scan, Up View, Signal Switching, Product Information (name, serial number, resolution, operating time, etc.), Adjustment Lock, Reset
Physical Specifications
Dimensions (Landscape, W x H x D)	405 x 406.5 - 506.5 x 205 mm
Dimensions (Without Stand, W x H x D)	405 x 334 x 61.5 mm
Net Weight	5.9 kg / 13.0 lbs
Net Weight (Without Stand)	4.1 kg / 9.0 lbs
Height Adjustment Range	100 mm
Tilt	30° Up, 0° Down
Swivel	35° Right, 35° Left
Pivot	90°
Hole Spacing (VESA Standard)	100 x 100 mm, M4, screw depth 3.5 - 10.4 mm
Environmental Requirements
Operating Temperature	0 - 40 °C
Operating Humidity (R.H., non condensing)	20 - 80 %
Certifications & Standards	CE, CB, cTUVus, FCC-A, CAN ICES-3 (A), VCCI-A, RCM, RoHS, WEEE
Warranty	2 years, 24-hour use

Design
Produktfarge	Grå
Sertifisering	CE, CB, cTUVus, FCC-A, CAN ICES-3 (A), VCCI-A, RCM, RoHS, WEEE
Skjerm
Skjermdiagonal	48,3 cm (19")
Skjermoppløsning	1280 x 1024 piksler
Synsvinkel, horisontal	170°
Synsvinkel, vertikal	160°
Display antall farger	16.78 million farger
Pikselbredde	0,294 x 0,294 mm
Horisontalt frekvensområde	15 - 68 kHz
Vertikal scanningsratio	50 - 61 Hz
Kontrastforhold	1000:1
Oppdateringsresponstid	10 ms
Ytelse
Analogt signalformatsystem	NTSC, PAL, SECAM
Innebygde høyttalere	Ja
VESA-montering	Ja
Tilkoblingsevne
Antall HDMI-porter	1
Antall VGA (D-Sub)-porter	0
Komposittvideo inn/sammensatt video inn	1
Energihåndtering
Strømforbruk (standby)	0,4 W
Energieffektivitetsklasse (SDR)	E
Energiforbruk (SDR) per 1000 timer	15 kWh
Miljømessige forhold
Driftstemperatur (T-T)	0 - 40 °C
Relativ luftfuktighet under drift (H-H)	20 - 80%
