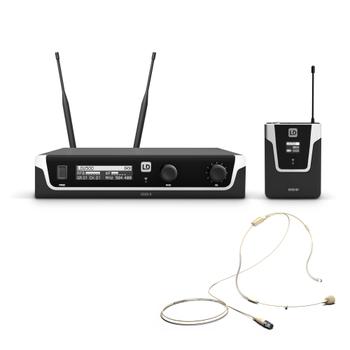

LD Systems LD Trådløs Mikrofon Kit med Bodypack Headset Beige
Du må logge inn for å handle/se priser.
|
|
LD Systems LD Trådløs Mikrofon Kit med Bodypack Headset Beige
Produktnummer:
LDU508BPHH
|
U508 BPHH
LDU508BPHH
Wireless Microphone System with Bodyack and Headset beige - 863 - 865 MHz + 823 - 832 MHz
The U500® Series vocal sets were developed in Germany to bring you affordable professional technology and sound quality. The radio systems for vocals and speech deliver impressive performance and high reliability, which will certainly exceed your expectations. We have designed the range specifically for professional users to ensure that your performance is an impressive and emotional experience.
Selectable transmit power up to 30 mW provides the U500® vocal sets with a free-field range of over 100 metres. They are available in three frequency bands: 584 - 608 MHz and 655 - 679 MHz, where 12 systems can be operated simultaneously, and 823 - 832 MHz + 863 - 865 MHz, where six systems can be operated at the same time. The True Diversity UHF wireless systems are equipped with an automatic scan facility to find the best free frequency, and convenient one-touch infrared synchronisation of transmitter and receiver to facilitate easy set up.
High-contrast OLED displays provide an excellent overview of functions, with indicators for group, channel, radio frequency, and signal strength and battery status. You can even enter individual usernames. In addition to the squelch function, the transmitter’s silent pilot tone ensures fail-safe operation. It protects against interference and mutes the receiver if signals without this tone are present. The U500®’s efficient technology and high-quality components provide clear, distortion-free transmission without latency or artefacts. Low power consumption means that the transmitter can run for up to 10 hours with 2 x AA batteries.
The U500® Series vocal sets are available with hand-held transmitters, headsets, lavalier microphones and single or double receivers. The hand-held transmitters feature interchangeable microphone capsules to suit singing or speaking.
- True diversity UHF wireless system
- Shock-mounted dynamic and condenser microphone capsules
- Automatic channel scan
- Easy one-touch infrared frequency syncing
- Pilot tone squelch circuit prevents noise
- Switchable RF transmitter output (2, 10 or 30 mW)
- Rugged enclosures
- High-contrast OLED display
Specifications
|
Product type
|
Wireless Microphone Systems |
|
Type
|
Headsets |
|
Transmission frequency range
|
823 - 832 MHz
, 863 - 865 MHz |
|
Weight
|
2,46 kg |
LDU508R - LD Systems U508 BPHH Receiver
|
Product type
|
Wireless Microphone System Accessories |
|
Type
|
Receivers |
|
Modulation Type
|
FM |
|
Frequency response
|
30 - 16000 Hz |
|
Channels
|
96 (8 groups of 12 channels) |
|
Groups
|
8 |
|
Antenna inputs
|
2 |
|
Antenna connector
|
BNC |
|
Signal-to-noise ratio
|
> 100 dB |
|
Noise reduction
|
Squelch |
|
Total Harmonic Distortion (THD)
|
< 0.3 % |
|
Controls
|
volume |
|
Audio output, balanced
|
XLR |
|
Audio output, unbalanced
|
6.3 mm jack |
|
Operating voltage
|
12 - 18 V DC |
|
Accessories (included)
|
power adapter |
|
Width
|
212 mm |
|
Height
|
44 mm |
|
Depth
|
159 mm |
|
Max. output level
|
+10 dBu |
|
Weight
|
0,85 kg |
|
Other features
|
Pilot tone |
|
Indicators
|
OLED Display |
|
Operating voltage
|
12 V DC, 500 mA |
LDU508BP - LD Systems U508 BPHH Bodypack transmitter
|
Type
|
Bodypack |
|
Inputs
|
Mini-XLR (3-pin) |
|
Signal-to-noise ratio
|
>90 dB |
|
Rated HF output power
|
Variable (2mW, 10mW, 30mW) |
|
Controls
|
select |
|
Operating voltage
|
2 x AA battery |
|
Operating time
|
>10 h (with alkaline batteries) |
|
Width
|
65 mm |
|
Height
|
86 mm |
|
Depth
|
23 mm |
|
Weight
|
0,09 kg |
|
Other features
|
switchable RF power |
LDWS100MH3 - LD Systems U508 BPHH Headset beige-coloured
|
Color
|
beige |
|
Frequency response
|
70 - 16.000 Hz |
|
Directivity
|
Cardioid |
|
Nominal impedance
|
1400 Ohm(s) |
|
Max. SPL
|
125 dB |
|
Phantom power requierements
|
5 V |
|
Microphone input
|
Mini-XLR (3-pin, female) |
|
Accessories (included)
|
Foam windscreen |
|
Weight
|
0,2 kg |
